1.3. Molecular structure of asphaltenes

One of the best representations of the asphaltene micelle is that reported by Yen (Yen (1974)) : He suggest molecular weights of 1 - 5×10³, a molecular formula of approximately (C₇₉H₉₂N₂S₂O)₃ and molecular shape as in Figure 6.

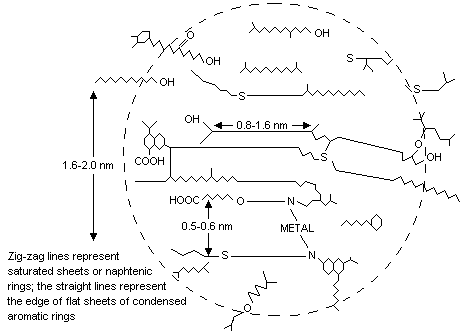

Figure 6: Asphaltene molecular shape, as proposed by Yen

This structure would be formed by several flat, stacked condensed rings. Five of these rings, each containing from 8 to 16 condensed rings could be placed at distances of 3.5 Å- 3.7 Å, and connected by systems of sulphide, ether, aliphatic chain and/or naphthene ring linkages. The condensed sheets may contain O, S and N atoms which may act as free radicals for anchor points of bound metals like Ni, V, Mo or Fe.

The whole asphaltene complex would be 8 - 16 Å in diameter and 16 - 20 Å in height.
